Popis

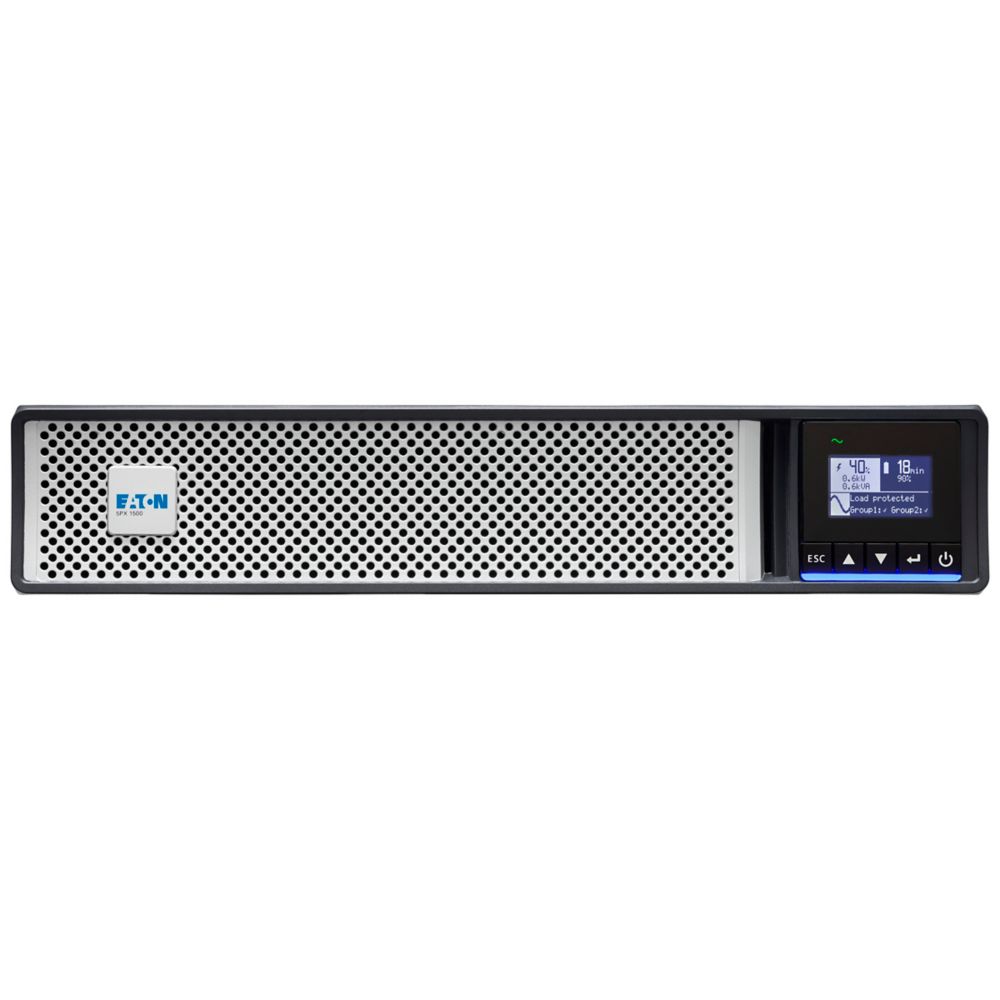

Eaton 5PX1500IRT2UG2 je line-interactive UPS s čistým sínusovým výstupom a jednotkovým účinníkom, takže výkon 1500 VA zodpovedá 1500 W. Konvertibilné prevedenie rack/tower 2U, účinnosť až 98 %, 8 výstupov IEC C13 a meranie energie po skupinách zásuviek z nej robia vhodné riešenie pre servery, úložiská a sieťové prvky. Viacjazyčný LCD displej, USB, sériové rozhranie, programovateľné kontakty a Mini-Slot podporujú jednoduchú správu. Hot-swap batérie možno rozšíriť externými batériovými modulmi pre dlhší čas zálohy.
Výdrž batérie Eaton 5PX1500IRT2UG2
/* Všetky selektory sú obmedzené na #q4-eaton-runtime, aby neovplyvnili e-shop. */
#q4-eaton-runtime {
–eaton-blue: #0067c6;
–ebm-1: #703f06;
–ebm-2: #ba2c10;
–ebm-3: #da6614;
–ebm-4: #f7c34b;
box-sizing: border-box;
width: 100%;
max-width: 980px;
margin: 24px auto;
padding: 22px;
color: #303030;
background: #fff;
border: 1px solid #e1e5e9;
border-radius: 6px;
font-family: Arial, Helvetica, sans-serif;
line-height: 1.4;
}
#q4-eaton-runtime *, #q4-eaton-runtime *::before, #q4-eaton-runtime *::after {
box-sizing: border-box;
}
#q4-eaton-runtime h2 {
margin: 0 0 8px;
color: #222;
font-size: clamp(21px, 3vw, 30px);
font-weight: 600;
}
#q4-eaton-runtime .q4-ebm-link {
margin: 0 0 18px;
font-size: 14px;
}
#q4-eaton-runtime .q4-runtime-layout {
display: grid;
grid-template-columns: minmax(0, 1fr) 220px;
gap: 22px;
align-items: start;
}
#q4-eaton-runtime .q4-chart-wrap {
position: relative;
width: 100%;
min-width: 0;
}
#q4-eaton-runtime svg {
display: block;
width: 100%;
height: auto;
overflow: visible;
touch-action: none;
}
#q4-eaton-runtime .q4-grid { stroke: #d9dde1; stroke-width: 1; }
#q4-eaton-runtime .q4-axis { stroke: #7c858d; stroke-width: 1.2; }
#q4-eaton-runtime .q4-tick {
fill: #545454;
font-size: 12px;
user-select: none;
}
#q4-eaton-runtime .q4-axis-title {
fill: #333;
font-size: 14px;
font-weight: 600;
}
#q4-eaton-runtime .q4-line {
fill: none;
stroke-width: 2.6;
stroke-linejoin: round;
stroke-linecap: round;
}
#q4-eaton-runtime .q4-point {
stroke: #fff;
stroke-width: 1.2;
cursor: pointer;
}
#q4-eaton-runtime .q4-crosshair {
stroke: #777;
stroke-width: 1;
stroke-dasharray: 4 4;
pointer-events: none;
}
#q4-eaton-runtime .q4-hit-area {
fill: transparent;
cursor: crosshair;
}
#q4-eaton-runtime .q4-tooltip {
position: absolute;
z-index: 5;
display: none;
max-width: 240px;
padding: 7px 9px;
color: #fff;
background: rgba(30, 35, 40, .94);
border-radius: 4px;
box-shadow: 0 3px 12px rgba(0,0,0,.2);
font-size: 12px;
line-height: 1.35;
pointer-events: none;
}
#q4-eaton-runtime .q4-controls {
padding-top: 12px;
font-size: 14px;
}
#q4-eaton-runtime .q4-controls-title {
margin: 0 0 10px;
font-weight: 700;
}
#q4-eaton-runtime .q4-choice {
display: flex;
align-items: center;
gap: 8px;
min-height: 28px;
cursor: pointer;
}
#q4-eaton-runtime .q4-choice input {
width: 15px;
height: 15px;
margin: 0;
accent-color: var(–eaton-blue);
}
#q4-eaton-runtime .q4-swatch {
width: 15px;
height: 4px;
flex: 0 0 auto;
border-radius: 2px;
}
#q4-eaton-runtime .q4-hover-data {
min-height: 132px;
margin-top: 18px;
padding: 10px;
background: #f5f7f9;
border-radius: 4px;
font-size: 13px;
}
#q4-eaton-runtime .q4-hover-data strong { color: #111; }
#q4-eaton-runtime .q4-note {
margin: 20px 0 0;
padding-top: 16px;
border-top: 1px solid #e4e7ea;
font-size: 13px;
font-weight: 600;
}
#q4-eaton-runtime .q4-source {
margin: 7px 0 0;
color: #666;
font-size: 12px;
}
#q4-eaton-runtime .q4-source a { color: var(–eaton-blue); }
@media (max-width: 760px) {
#q4-eaton-runtime { padding: 16px 12px; }
#q4-eaton-runtime .q4-runtime-layout { grid-template-columns: 1fr; }
#q4-eaton-runtime .q4-controls { padding-top: 0; }
#q4-eaton-runtime .q4-hover-data { min-height: 0; }
}
Výdrž batérie Eaton 5PX1500IRT2UG2
Externý batériový modul: 5PXEBM48RT2UG2
Výdrž batérie Eaton 5PX1500IRT2UG2 podľa zaťaženia
Zobraziť:
Štandardná výdrž UPS
UPS + 1 EBM
UPS + 2 EBM
UPS + 3 EBM
UPS + 4 EBM
Prejdi kurzorom po grafe pre zobrazenie podrobných hodnôt.
Výdrž batérie je približná a môže sa líšiť podľa zariadenia, konfigurácie, veku batérie, teploty a ďalších podmienok. Skutočná výdrž sa môže od typických hodnôt líšiť približne o ±15 %.
Zdroj údajov: Eaton Battery Runtime Graph
(function () {
‚use strict‘;
var root = document.getElementById(‚q4-eaton-runtime‘);
var svg = document.getElementById(‚q4-runtime-chart‘);
if (!root || !svg || root.dataset.ready === ‚1‘) return;
root.dataset.ready = ‚1‘;
var NS = ‚http://www.w3.org/2000/svg‘;
var W = 720, H = 470;
var margin = { top: 22, right: 18, bottom: 60, left: 68 };
var plotW = W – margin.left – margin.right;
var plotH = H – margin.top – margin.bottom;
var maxX = 1500, maxY = 3000;
var series = {
standard: { label: ‚Štandardná výdrž UPS‘, color: ‚#0067c6‘, data: [[75,185],[100,137],[125,109],[150,91],[175,77],[200,67],[225,59],[250,53],[275,48],[300,44],[325,40],[350,37],[375,34],[400,32],[425,29],[450,28],[475,26],[500,24],[525,23],[550,22],[575,21],[600,20],[625,19],[650,17],[675,16],[700,16],[725,15],[750,14],[800,13],[850,12],[900,11],[950,10],[1000,9],[1100,8],[1200,7],[1300,6],[1500,5]] },
ebm1: { label: ‚UPS + 1 EBM‘, color: ‚#703f06‘, data: [[75,690],[100,512],[125,408],[150,338],[175,289],[200,252],[225,223],[250,199],[275,180],[300,164],[325,150],[350,138],[375,128],[400,119],[425,111],[450,104],[475,98],[500,92],[525,87],[550,82],[575,78],[600,74],[625,71],[650,68],[675,65],[700,62],[725,60],[750,57],[775,55],[800,53],[825,51],[850,49],[900,46],[950,43],[1000,41],[1100,36],[1200,32],[1300,29],[1500,27]] },
ebm2: { label: ‚UPS + 2 EBM‘, color: ‚#ba2c10‘, data: [[75,1272],[100,944],[125,752],[150,624],[175,533],[200,464],[225,411],[250,367],[275,332],[300,302],[325,277],[350,255],[375,236],[400,219],[425,205],[450,192],[475,180],[500,170],[525,160],[550,152],[575,144],[600,137],[625,131],[650,125],[675,120],[700,115],[725,110],[750,106],[775,102],[800,98],[825,95],[850,91],[900,86],[950,80],[1000,75],[1100,67],[1200,60],[1300,54],[1400,51],[1500,50]] },
ebm3: { label: ‚UPS + 3 EBM‘, color: ‚#da6614‘, data: [[75,1902],[100,1412],[125,1124],[150,933],[175,797],[200,695],[225,614],[250,550],[275,497],[300,452],[325,414],[350,382],[375,353],[400,328],[425,306],[450,287],[475,270],[500,254],[525,240],[550,227],[575,216],[600,206],[625,196],[650,187],[675,179],[700,172],[725,165],[750,159],[775,153],[800,147],[825,142],[850,137],[900,128],[950,120],[1000,113],[1100,100],[1200,90],[1300,82],[1400,76],[1500,75]] },
ebm4: { label: ‚UPS + 4 EBM‘, color: ‚#f7c34b‘, data: [[75,2570],[100,1907],[125,1519],[150,1261],[175,1076],[200,938],[225,830],[250,743],[275,671],[300,611],[325,559],[350,516],[375,477],[400,444],[425,414],[450,388],[475,364],[500,343],[525,325],[550,307],[575,292],[600,278],[625,265],[650,253],[675,242],[700,232],[725,223],[750,214],[775,206],[800,199],[825,192],[850,185],[900,173],[950,162],[1000,153],[1100,136],[1200,121],[1300,111],[1400,103],[1500,101]] }
};
function el(name, attrs, text) {
var node = document.createElementNS(NS, name);
Object.keys(attrs || {}).forEach(function (key) { node.setAttribute(key, attrs[key]); });
if (text !== undefined) node.textContent = text;
return node;
}
function xScale(value) { return margin.left + (value / maxX) * plotW; }
function yScale(value) { return margin.top + plotH – (value / maxY) * plotH; }
function enabled(key) {
var box = root.querySelector(‚input[data-series=“‚ + key + ‚“]‘);
return !box || box.checked;
}
function interpolate(data, x) {
if (x = data[data.length – 1][0]) return data[data.length – 1][1];
for (var i = 1; i < data.length; i++) {
if (x
